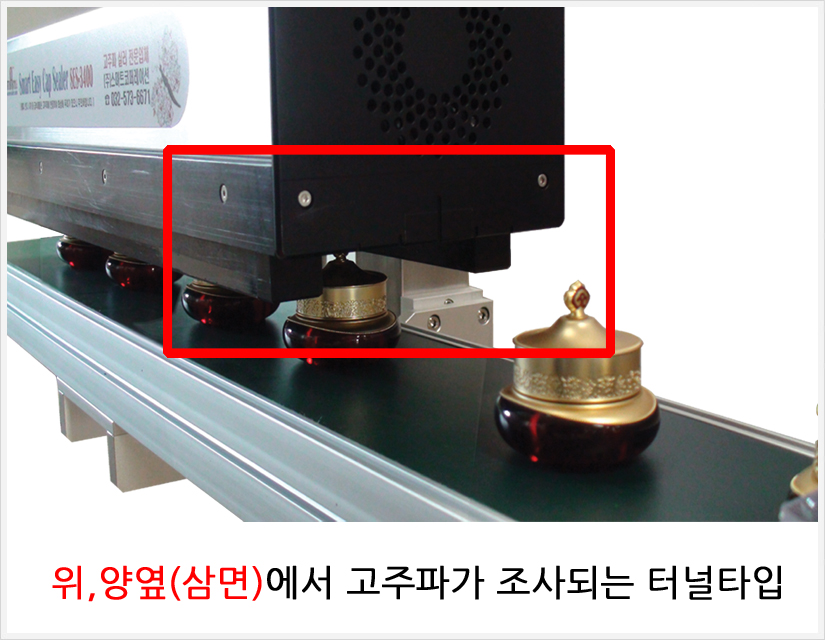

The product is a sealing device by irradiating high-frequency when plastic container comes in through conveyer belt in caped status. This utilizes the principal of irradiating high frequency to fasten the spiral part of the cap without using other pressure and the degree of precision of the cap is very good and it is suitable for mass production.



This is a patent registered product with the help of research and development.
  - Adopted multi-function, multi-coil by PWM control
  - Structure of Integrated power unit and coil unit
  - Safety - eight types
  - Constant output can be made by applying PFC

It can be used continuously with minimum power, and does not need consumables
It utilizes air cooling system and boasts for its minimum external dimension and weight
It utilizes stand made from stainless material, therefore, it is suitable for diary plant, food processing plant which need a lot of water.

Characteristic of Digital Type
   - Control everything about the product with touch screen.
   - Set administrator to avoid others using it.
   - Set production quantity goal.
   - Check production quantity, defects
     (Liner detection, Cap defect detection, Container fall detection, etc.)
   - Save data to USB.

Model name	SES-3400A(U)	SES-3400B(U)
Input power	AC 220V *60Hz * 1Phase
Input current	15A. Max.
Output power	~3.5kW. Max.
External dimension	800W * 740L * 1600H
Weight	about 55Kg
Production speed	1~50M/Min
Caution	Production speed may vary depending on the container type, sealing machine type and environmental condition.
Container specification	Ø15 ~ Ø80	Ø35 ~ Ø120
Option	Conveyor, power-saving mode, sealing machine detecting sensor, speed detection, etc.
