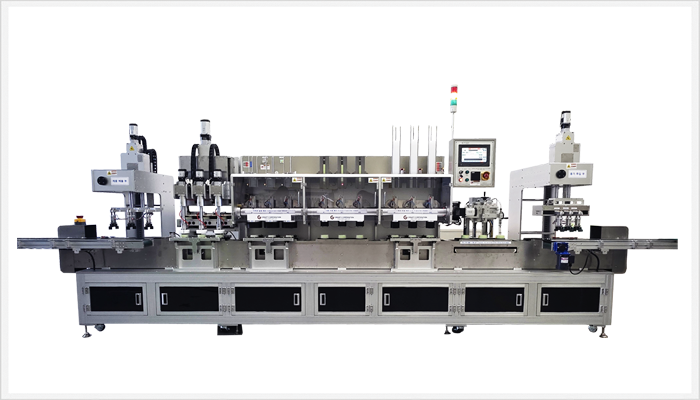

SES-4000L-3 ( cartridge type )

Induction capless Sealer (Line type)

This equipment is a one-stop automated system that handles all the core stages of cosmetic production—container feeding, filling,

inner lid insertion, spoon placement, Induction sealing, and capping—within a single line. By integrating these complex processes,

it maximizes production efficiency while simultaneously reducing labor costs and ensuring consistent quality.

With a high-speed design capable of producing up to 30 units per minute, the system delivers outstanding performance for
both small-to-medium manufacturers and large-scale OEM/ODM operations. Its precise volumetric filling system and advanced
high-frequency sealing technology enhance product hygiene and preservation, while the flexible design accommodates a wide
range of container and cap specifications.

The inclusion of automatic spoon placement and inner lid insertion ensures both product completeness and consumer convenience.

Its compact structure optimizes space utilization, and the hygienic design—compliant with

GMP standards—enables stable operation even in cleanroom environments.

​



Process Sequence​  :
Container Feeding & Alignment ▶ Filling ▶ Inner Lid Insertion ▶ Spoon Placement ▶ Induction Sealing ▶ Capping ▶ Discharge​




​

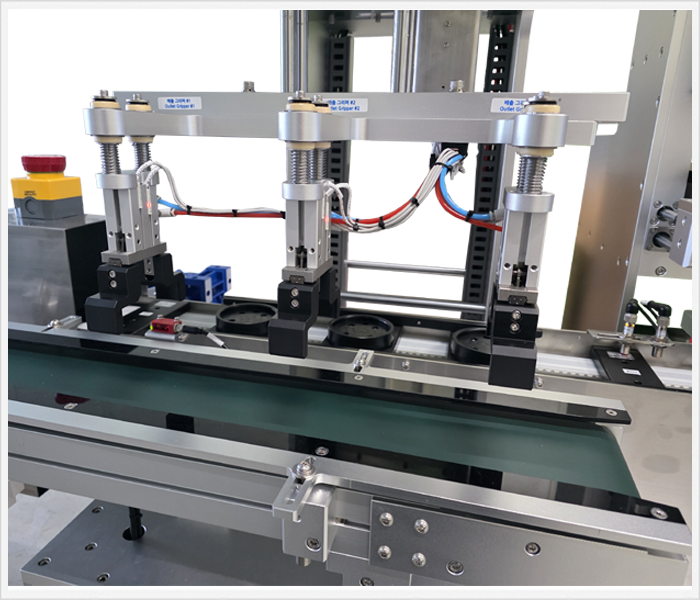

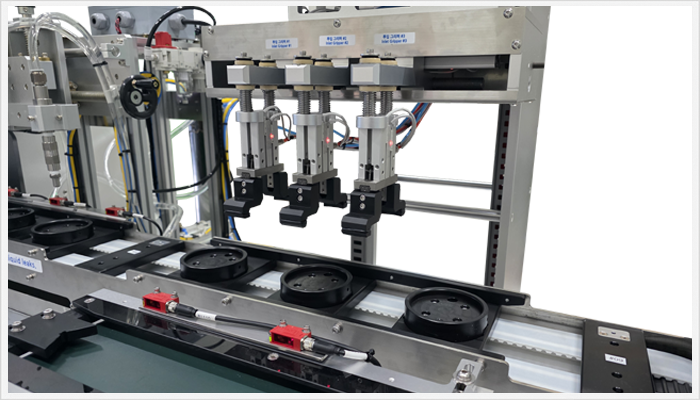

 ▶ Container Feeding & Alignment : Automatically feed empty containers and align them in a consistent direction.​

​

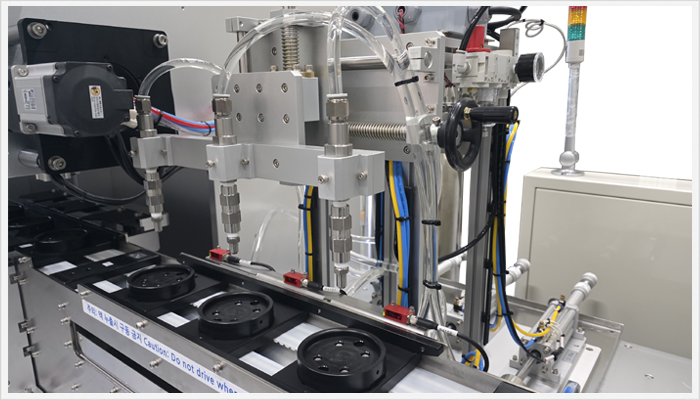

 ▶ Filling : Accurately fill using a metering pump, while reliably handling even high-viscosity creams.​​

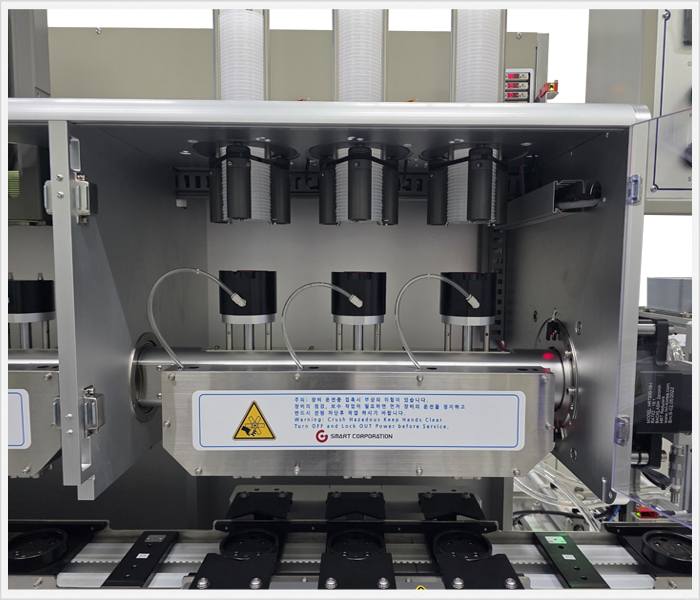

 ▶ Inner Lid Insertion : Automatically insert the inner lid to protect the contents and enhance sealing strength.​​​



 ▶ Spoon Placement : Accurately place the spoon on the lid to enhance consumer convenience.​​

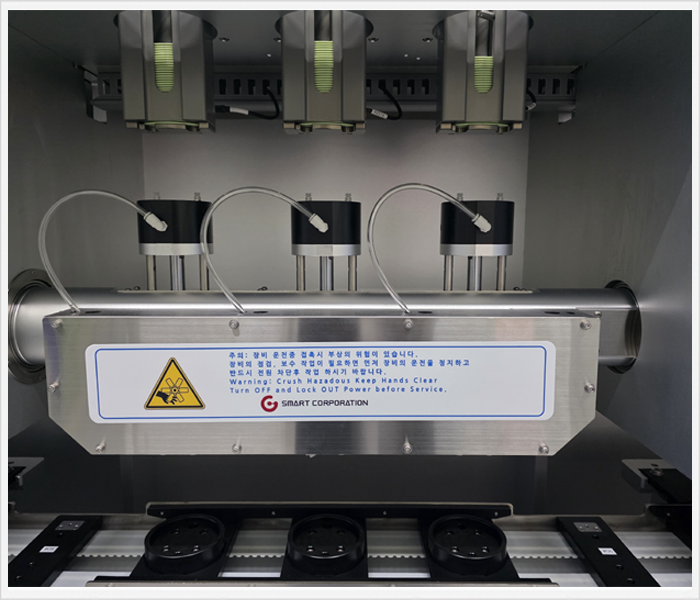

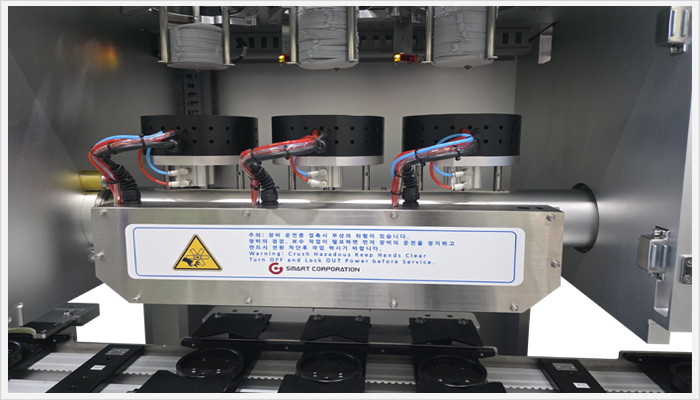

 ▶ Induction Sealing : Completely seal the lid and container using a high-frequency method to improve preservation and extend shelf life.​​

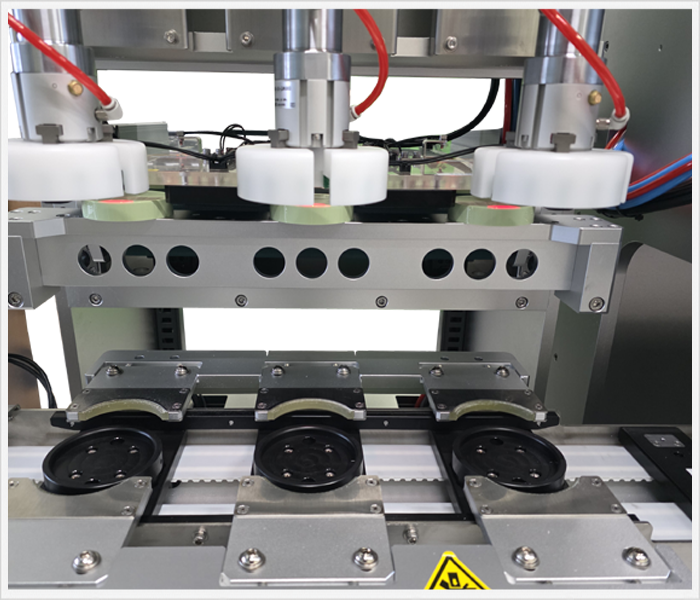

 ▶ Capping : Automatically fasten the cap, with adjustable torque to accommodate various cap types.​​

​
​ ▶ Discharge : Automatically discharge the finished products after capping to the outside of the line.​​





・ Container Feeding & Alignment ▶ Filling ▶ Inner Lid Insertion ▶ Spoon Placement ▶ Induction Sealing ▶ Capping ▶ Discharge​​

・ High Productivity: Up to 30 units per minute, stable operation even in mass-production environments​​​​

・ Convenience & Reliability: Enhanced user-friendliness with minimized defects​

・ Precision Filling: Accurate filling with metering pump, capable of handling high-viscosity creams​​

・ Induction Sealing: Ensures complete sealing, improves product preservation, and extends shelf life​​

・ Consumer-Oriented Design: Automatic inner lid insertion and spoon placement for product completeness and convenience​​

・ Hygienic Structure: Designed for GMP compliance, stable operation in cleanroom environments​​


​・ Advanced Capless Sealing System​

  - Touchscreen interface for monitoring operation process ​

  - Real-time monitoring system​

  - Data recording for production history management​

・​  Visual inspection for sealing sheet deformation and adhesion ​

・ Continuous operation with minimal power consumption ​

・ Air-cooled cooling system for optimized size and weight  ​

・ Extended Shelf Life & Innovation​

  - Induction sealing technology enhances preservation and shelf life

  ​- Provides advanced packaging solutions to support new product development​

・​ Expandable & Versatile Applications​

  - Optional processes: gas flushing, capping, labeling integration

  - Applicable to diverse industries including food, cosmetics, and pharmaceuticals​​


제품규격
​Input Power Source​ AC 380V X 50/60Hz X 4Phase
Input Air 600kg/cm2-400m3/min
​External Dimensions​​ 6m * 1.5m * 2.2m​(H)   (​Order type​)​
​​Weight​​ Order type

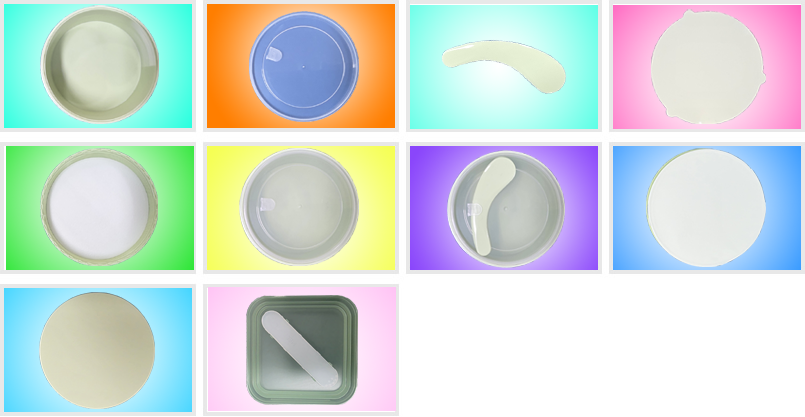

​Applicable Containers​​ ​​Sealing Film Dimensions​​ Order type
Units per Minute​ 30 EA/Min (Order type)
※ Product specifications may change without notice to improve quality or performance.​

SES-4000R-2 기술성

      ・ Innovative sealing method for high quality, with inspection followed by capping process
・ Up to 93% energy savings compared to electric heater sealing
  - Electric heater requires 15 kW, while induction sealing operates with single-phase 3kW
・ Automatic perforation of sealing film for precise centering and removal of contaminants
・ Multi-container compatibility: one machine can produce various types of containers
  - Quick changeover of parts within 10 minutes
・ Applicable to special caps and square containers

・ Optional Add-ons
・ Embossed logo marking at the center of aluminum sealing film
・ Surface sterilizer installation for sealing film
・ Integration with capping and filling unit


We also offer tailor-made solutions to meet customer-specific product requirements.
